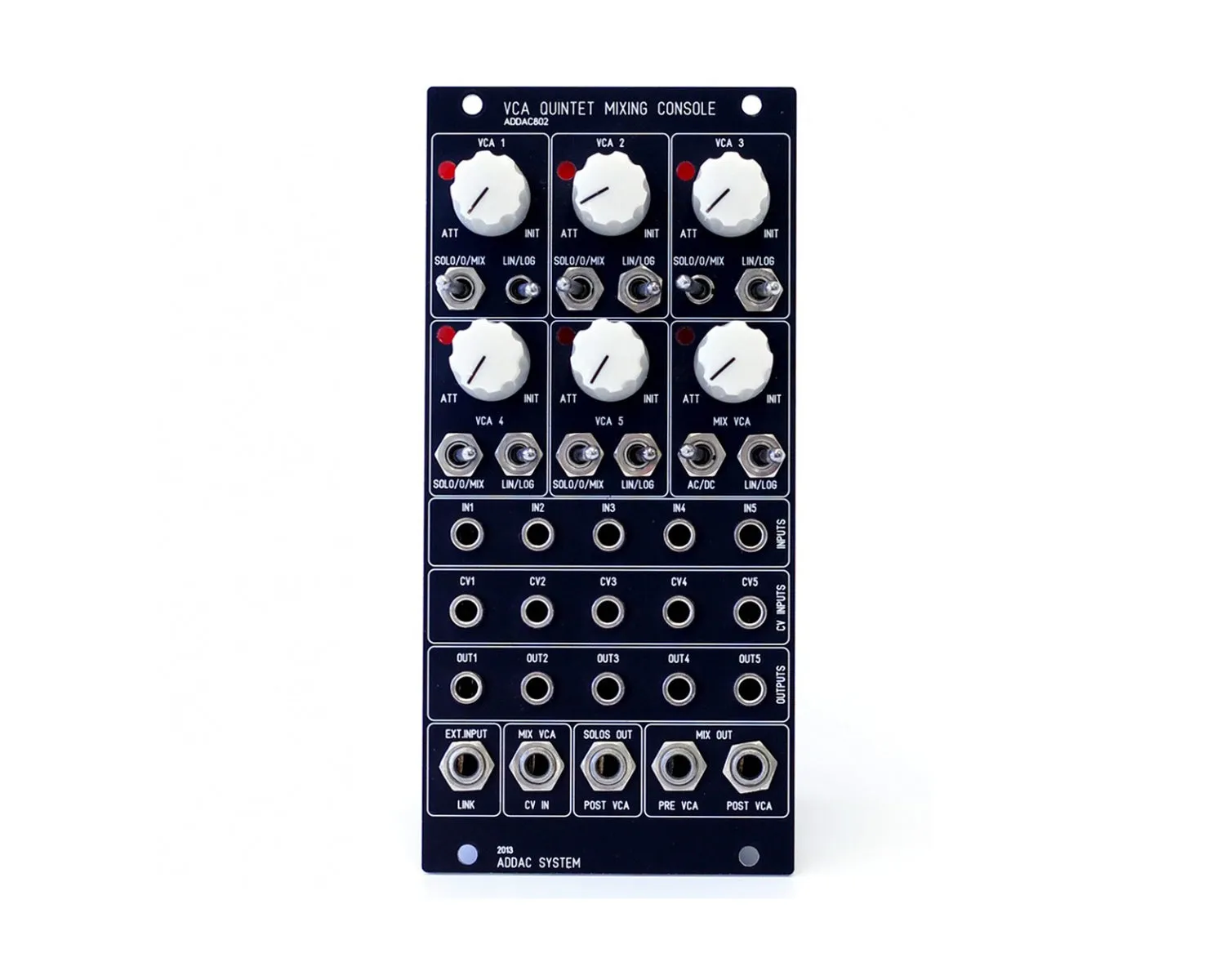

The ADDAC802 VCA Quintet is a 12HP, five-channel analog VCA and mixer great for dynamically combining different signals in a modular situation.
Each channel has a CV input and attenuator to set the level of amplification and there is also a switch to route the channel to the mix output, the solo output, or to mute it. Another switch selects the VCA response between linear and logarithmic.

• Five-channel VCA and mixer
• Each channel can be soloed, mixed, or muted via a switch
• VCAs can be linear or logarithmic
• Individual VCA outputs
• Final output VCA with CV input
• Mix output either pre or post mix-VCA
• Solo outputs post VCA
• External input for daisy chaining multiple mixers together

Video:

Product Specs

• Item Number: 20264
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Portugal
• MPN: ADDAC802
• Modular Grid: Eurorack
• Dimensions*: 12 HP 55 mm deep
• Power*: 150 mA 12V 150 mA -12V 0 mA 5V

* User contributed details
