Product Details

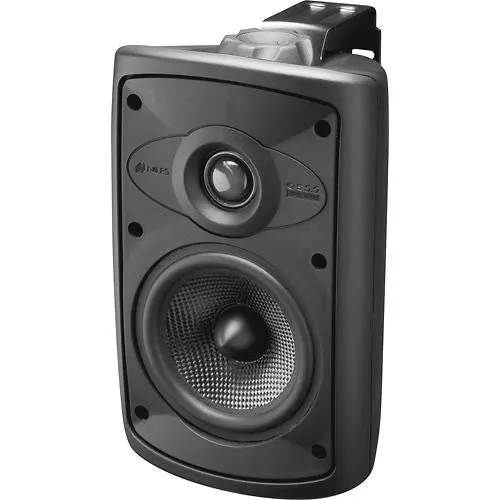

+These indoor/outdoor speakers feature built-in woofer/baffle assemblies, 5" interlaced carbon fiber cones and 1" trilaminate Teteron dome tweeters to bring you high-quality sound with deep bass, low distortion and detailed high frequencies.
Handles up to 100 watts maximum input power
For strong, controlled audio.
5" interlaced carbon fiber woofer cone
Along with a 1 " trilaminate Teteron dome tweeter for a complete range of sound.
Built-in woofer/baffle assembly
Increases cone area for powerful bass output.
Butyl rubber cone surround
Dampens resonance for high-quality sound.
Dispersion stabilizer
Distributes midrange tones for clear off-axis audio.
Low diffraction grille and front baffle
Deliver accurate acoustics.
Rigid inert cabinet
Prevents transmissions of unwanted vibrations for clean and dynamic bass response.
Weather-resistant design
Protects against the environment.
Inverted gold-plated 5-way binding posts
Repel moisture and ensure a secure connection.
Tapered design
Allows mounting in corners.
95Hz - 23kHz ±3dB frequency response
For faithful sound reproduction.
91dB sensitivity
Provides powerful sound.
8 ohms impedance
Conducts power through the speakers.
Product Features
- Woofer Technology
- Integrated Woofer/baffle Assembly Increases Cone Area To Provide Powerful Bass Output
- 5" Interlaced Carbon Fiber Cone Is Extremely Rigid To Reduce Breakup And Lower Distortion
- Butyl Rubber Cone Surround Damps Resonance And Provides Exceptional Durability
- Tweeter Technology
- 1" UltraSilk Dome With Fluid-cooling And Ultra-wide Dispersion For Clear, Detailed And Extended High Frequencies
Product Specifications
- Impedance: 8 Ohms
- Recommended Amplifier Power: 5W To 100W
- Frequency Response: 100Hz - 21kHz /-3dB
- Sensitivity: 90dB For 2.83V Pink Noise
- Dimensions (includes Bracket): 9-7/8" High X 6-1/4" Wide X 6-3/4" Deep
Product Downloads
General Information | |
Manufacturer | Niles Audio Corporation |
Manufacturer Part Number | FG00993 |
Brand Name | Niles |
Product Series | OS |
Product Model | OS5.5 |
Product Name | OS5.5 Speaker |
Packaged Quantity | 2 |
Product Type | Speaker |
Technical Information | |
Crossover Type | 2-way |
RMS Output Power | 100 W |
Minimum Frequency Response | 95 Hz |
Maximum Frequency Response | 23 kHz |
Impedance | 8 Ohm |
Sensitivity | 90 dB |
Physical Characteristics | |
Color | Black |
Form Factor | Bookshelf |
Height | 9.9" |
Width | 6.3" |
Depth | 6.8" |
Miscellaneous | |
Package Contents |
|
Warranty | |
Limited Warranty | Lifetime |
