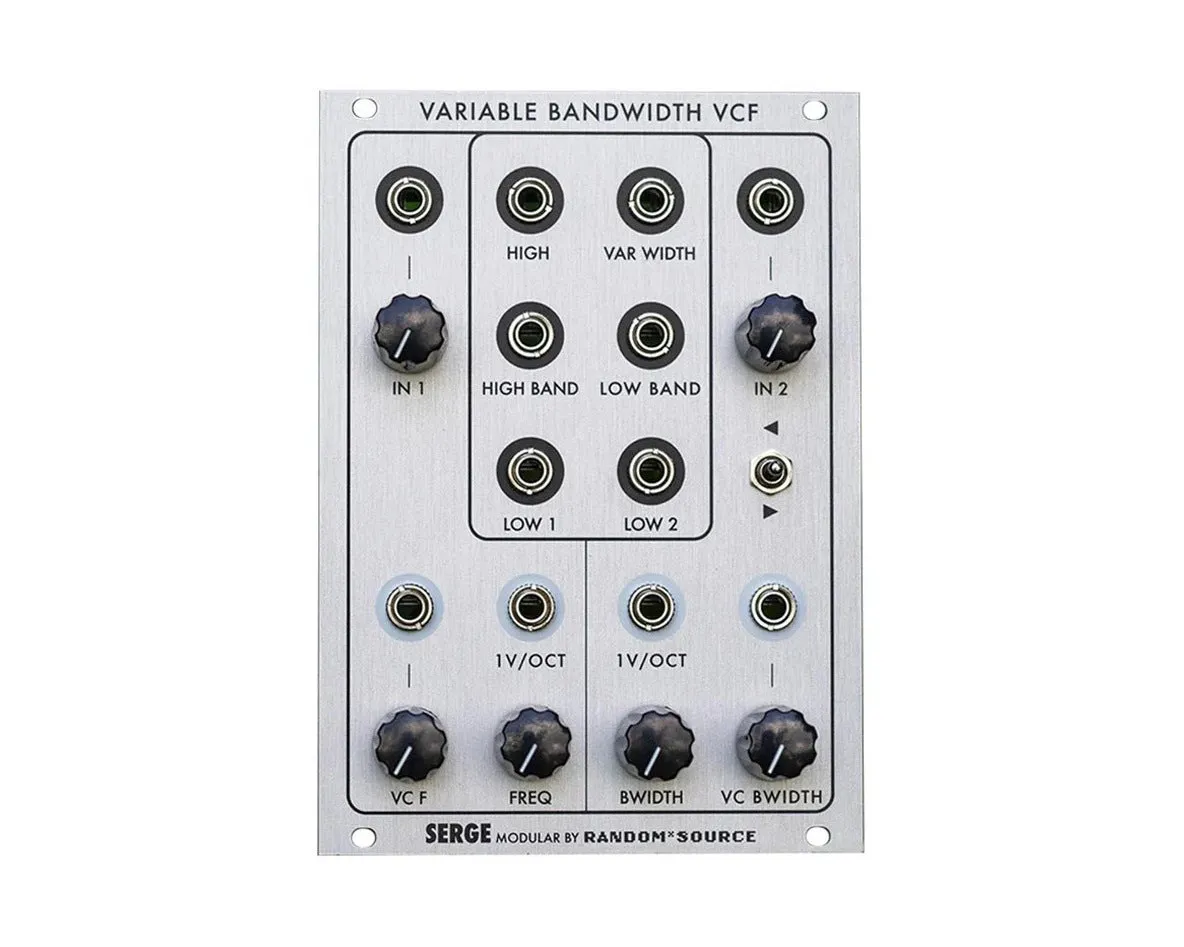

＋The Serge VCF2 is probably the rarest classic filter in the Serge system, offering a unique combination of 2 filters.
According to the 1983 Serge catalogue, the “VARIABLE BANDWIDTH VCF (VCF2) has a band-pass output which can be varied manually or with voltage control. This is a standard response synthesiser VCF, typical to filters used in many studio systems. In the VCF2, two state-variable VCF's are connected in series to produce a total of five outputs. High pass, low pass, two fixed bandwidth outputs, and one variable bandwidth output are available. The outputs are all flat-response (no resonance) so the VCF2 is suitable for processing concrete sounds without introducing resonant coloration to the timbres. Under voltage or manual control, cut-off frequency of the high and low-pass outputs are affected, as well as the centre frequency of the two band-pass outputs. Both centre frequency and bandwidth are independently controllable on the variable bandwidth output."
For the first time, designed and licensed by Serge - the VCF2 is now available as a eurorack module. A new switch has been added which determines if the CV-controls are routed to the first (left), second (right) or both filters, bringing even more sonic options than the original.
Product Specs
- Item Number: 34260
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: Germany
- MPN: SM-VCF2
- Modular Grid: Eurorack
- Dimensions*: 18 HP 30 mm deep
- Power*: 45 mA 12V 45 mA -12V 0 mA 5V
